Product Details:
|
| Appearance: | Light Yellow Liquid | Content: | >99.0% |
|---|---|---|---|
| Flash Point: | >100℃ | Odor: | Odorless |
| Product Name: | Blend Polyol | Viscosity: | 200-600 Cps |
| FRD: | 25-36 | Application: | To Make The Pipeline And Pipe Shell |
| Highlight: | Blend Polyol For Pipeline Insulation,Odorless Rigid Blend Polyol,Rigid Blend Polyol For Pipe Shell |
||
Blend Polyol JYPL-102 for pipeline insulation& pipe shell
Product Introduction
JYPL-102 is a kind of Rigid blend Polyol which is made from Rigid Polyether Polyol, cat, other additives and blowing agent which has good fluidity and the economic quantity of the feed is good.

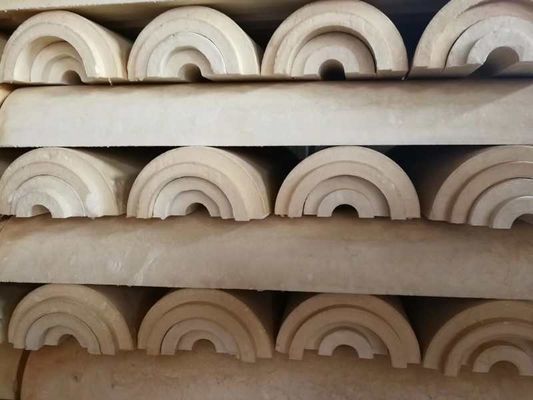

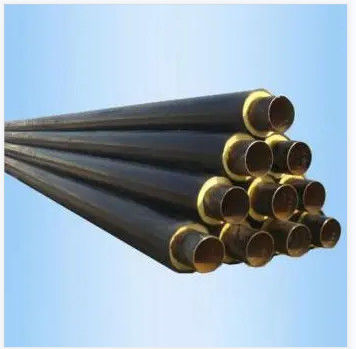

JYPL-102 should be mixed with ISO to make the pipeline insulation or produce the pipe shell. The finished products enjoy excellent thermal insulation properties, mechanical strength and low water absorption.
Typical physical properties
| Property | JYPL-102 | Standard |
| Appearance | yellow transparent liquid | Q/0600YPU 025-2012 |
|
Viscosity(25℃),mpa·s Density(20℃),g/ml OHV,mg/KOH |
200-600 1.09-1.13 270-370 |
GB/T 12008.7-2010 GB/T 15223-2008 GB/T 12008.3-2009 |
| Water content,(%) | 0.5-2 | GB/T 22313-2008 |
Reaction characteristics
|
Hand mixing (Raw material temperature 22±2℃, Material ratio 1:1.0-1.3) |
Data 22 |
| Mixing Time,s | 6-8 |
|
Cream Time,s Gel Time,s Free Rise Density,Kg/m3 |
25-45 120-280 25-36 |
Typical foam properties
| Items | Data | Standard |
| Core density,Kg/m3 | 60-65 | GB/T 29047-2012 |
| Compressive strength,MPa | ≥0.4 | GB/T 29047-2012 |
| Water absorption rate,(%) | ≤5.0 | GB/T 29047-2012 |
| Obturator rate(%) | ≥92 | GB/T 29047-2012 |
| 50℃ thermal conductivity, (W/m.K) | ≤0.026 | GB/T 29047-2012 |
Package

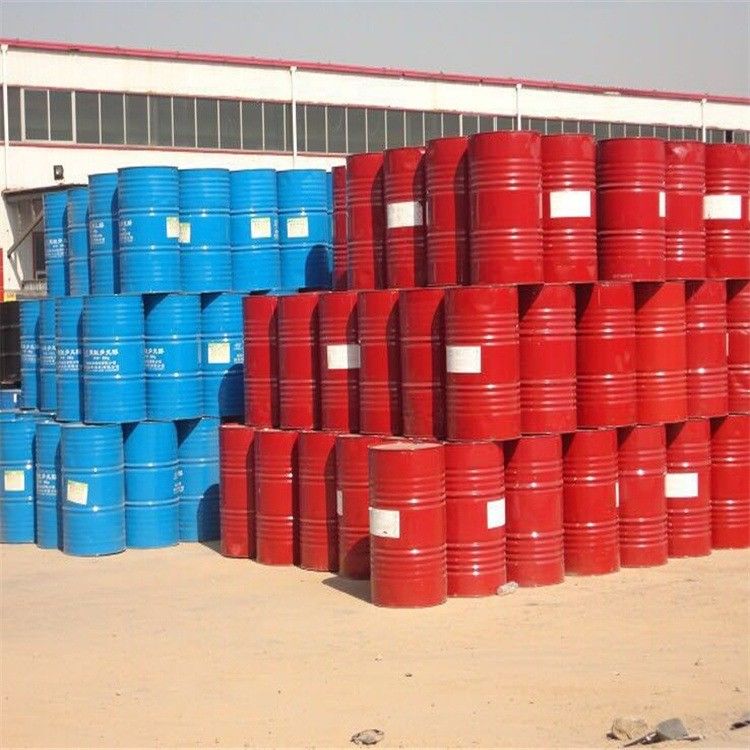

220kg net per steel drum；1000kg per IBC drum；About 25 ton by 20cbm flex tank
Transportation and storage
Pls make ventilate, keep in cool and dry transportation and storage condition, Pls avoid strict sunshine, raining; Shelf life is 6 months on the drum, but if drum is not opened, shelf life can be one year. It is normal chemical.
