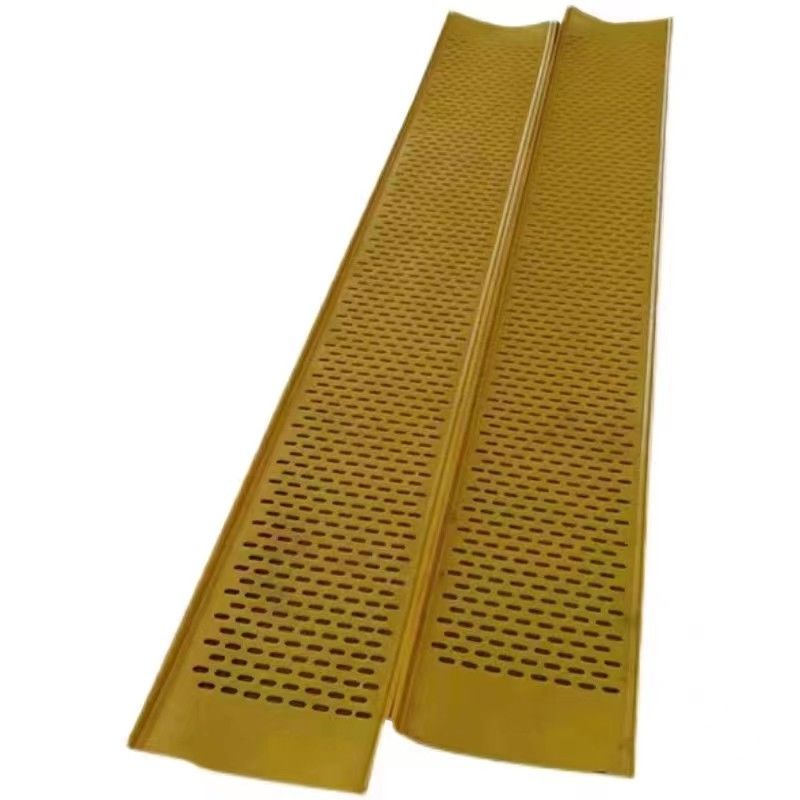

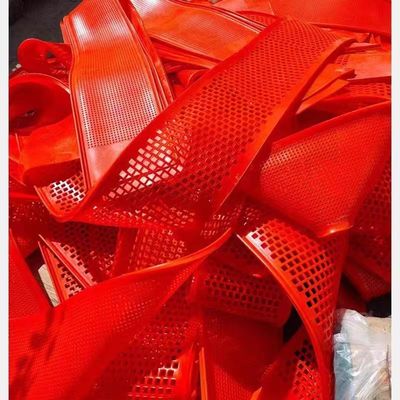

200-600mm Width Flip Flow Polyurethane Screen Mesh With Comb Square Oblong Aperture

200-600mm width Flip Flow Screen mesh for coal with various aperture

Description:

This kind of Flip flow screen mesh are manufactured from the high quality Polyurethane resin and promote the flow from the sticky materials tto make the screen without blinding.

Polyurethane Flip-flop screen are the most popular  screen mesh for the coal sievning due to the high wear resistance, long working life etc.

Base information:

The aperture is square, rectangle, round, ellipse etc.

The normal aperture size is from 2mm to 50mm

The normal width is from 200mm to 600mm, Length can be made by the customer requirement.

For the connection, there are four normal method, 1) Mosaic,  2)Bolt connection,  3)Press bar connection 4) Hook connection.

For the quotation, if possible, you can send us the drawing, otherwise, Pls let us  know the below information.

Features of Polyurethane Screen Mesh

1. Excellent abrasion resistance performance and long service life: 8`10 times longer than common wire mesh, 3 times longer than stainless wire mesh and about 3.9 times longer than natural rubber. It has the best wear-resist performance in the mesh material

2. Little work for maintenance, the polyurethane screen panel is heavy duty structured and hardly to be damaged under normal operation.

3. Low noise: our polyurethane and rubber screen media can reduce that noise level by as much as 9 decibels.

4. Variety of fastening options including Pin-Style, Pin and Sleeve, and Bolt Down, clips-on, hook etc. Whether you need maximum holding power, ease of installation and removal, optimum versatility or a combination of all of these, we have a fastening system to meet your needs.
