Product Details:
|
| Material: | Polyurethane | Abrasion Resistance: | High |
|---|---|---|---|
| Aperture: | Min 0.075, Can Be Adjusted By The Customer Requirement | Colour: | Red, Yellow, Orange Ect. |
| Elongation: | High | Length: | Normal 1040mm, Can Be Designed By Customer Requirement |
| Mesh Size: | Normal 1040*700, Can Be Designed By Customer Requirement | Open Area: | At Least 32% |
| Tensile Strength: | High | Wides: | Normal 700mm, Can Be Designed By Customer Requirement |
| Brand: | Joyway | Application: | Ore, Coal Screening |
| Hardness: | 85+/-2 Shore A | Feature: | Wear-resisting, Noiseless , Light Etc |
| Highlight: | High Frequency Polyurethane Screen Mesh,700mm*1040mm Polyurethane Fine Screen,Polyurethane Screen Mesh 700mm*1040mm |
||

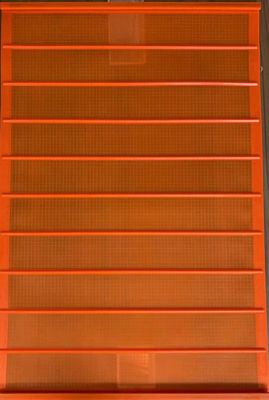

High Frequency Polyurethane Fine Screen Mesh
Description:
Urethane Screen mesh is also called high Frequency Polyurethane Fine Screen Mesh which is specifically designed for , mainly used for sieving the fine metal sands, such as gold sands, silica sands, etc.
Urethane Screen mesh is made from the high quality Polyurethane materials. As a core part of fine mesh vibrating screen, high frequency polyurethane screen mesh directly affect the screening efficiency and screening performance. It increases the mineral recovery rate, widely applied in metal and non-metallic minerals processing applications. This screen panels offer high open area and anti-blinding properties with performance that conventional woven wire screen cannot compare with.
Features &Advantages
Specification For Polyurethane Fine Screen Mesh For Screener:
| Name | Polyweb urethane screen for high frequency vibrating sieve |
| Material | Polyurethane materials |
| Screen Size | Length& width could be customized, normal size is 700mm*1040mm |
| Minimum aperture: | 0.075mm |
|
Available apertures:
|
0.075mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm, 0.23mm, 0.3mm,0.45mm, 0.5mm, 0.55mm,0.6mm, 0.7mm, 0.85mm, 1.0mm |
| Application | For High Frequency Vibrating Screen – |
| Hook | Polyurethane Or Metal |
| Open Area | 32%~42% |
| Using life | More than 6 months |
