Product Details:
|
| Material: | Polyurethane | Abrasion Resistance: | High |
|---|---|---|---|
| Aperture: | Min 0.075, Can Be Adjusted By The Customer Requirement | Colour: | Red, Yellow, Orange Ect. |
| Elongation: | High | Mesh Size: | 1235mm*750mm |
| Open Area: | At Least 32% | Tensile Strength: | High |
| Brand: | Joyway | Application: | For High Frequency Vibrating Screen |
| Hardness: | 85+/-2 Shore A | Feature: | Wear-resisting, Noiseless , Light Etc |
| Highlight: | Fine pu screen mesh,1235x750mm pu screen mesh,Fine polyurethane screen mesh |
||
Description:

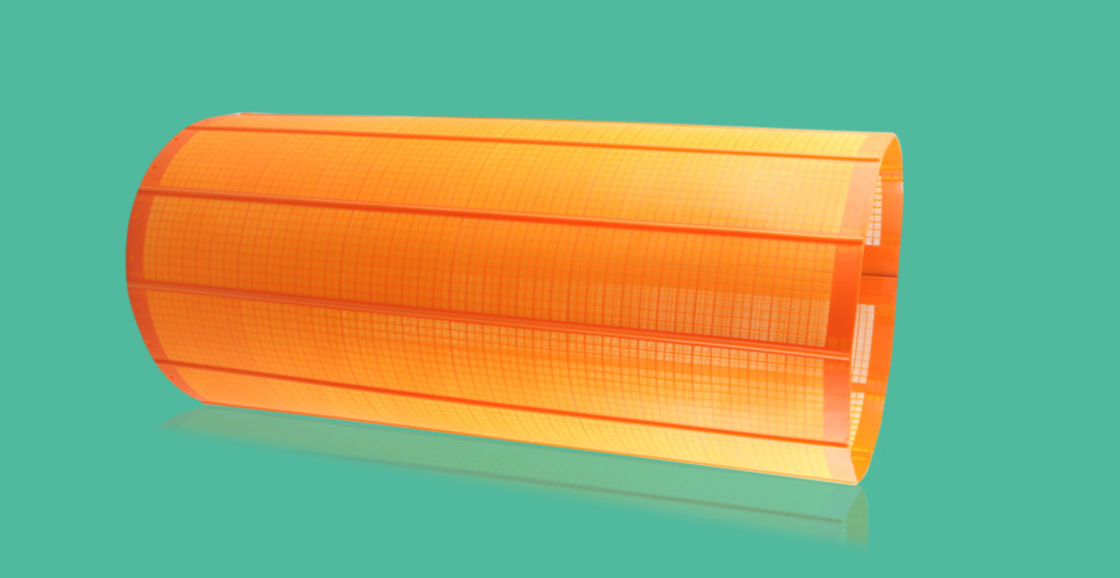

Urethane Screen mesh is also called high Frequency Polyurethane Fine Screen Mesh which is specifically designed for , mainly used for sieving the fine metal sands, such as gold sands, silica sands, etc.
Urethane Screen mesh is made from the high quality Polyurethane materials. As a core part of fine mesh vibrating screen, high frequency polyurethane screen mesh directly affect the screening efficiency and screening performance. It increases the mineral recovery rate, widely applied in metal and non-metallic minerals processing applications. This screen panels offer high open area and anti-blinding properties with performance that conventional woven wire screen cannot compare with.
Features &Advantages
Specification For Polyurethane Fine Screen Mesh For Screener:
| Name | Polyurethane High Frequency 1040mmx700mm Vibrating Screen Mesh for |
| Material | Polyurethane materials |
| Screen Size | 1235mm*750mm |
| Minimum aperture: | 0.075mm |
|
Available apertures:
|
0.075mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm, 0.23mm, 0.3mm,0.45mm, 0.5mm, 0.55mm,0.6mm, 0.7mm, 0.85mm, 1.0mm |
| Application | For High Frequency Vibrating Screen – |
| Hook | Polyurethane Or Metal |
| Open Area | 32%~42% |
| Using life | More than 6 months |
