Product Details:
|
| Features: | High Strength, Durable, Easy To Install | AbrasionResistance: | High |
|---|---|---|---|
| Application: | Screening And Sieving | Color: | Yellow, Red, Orange, White Etc. |
| Elongation: | High | Materials: | Polyurethane Materials |
| MeshSize: | Can Be Designed According To The Customer Requirement | TearResistance: | High |
| Aperture Size: | Min 3mm | Thickness: | Min 21mm |
| Highlight: | Polyurethane Screen Mesh,Stone mining Polyurethane Tensioned Screens |
||

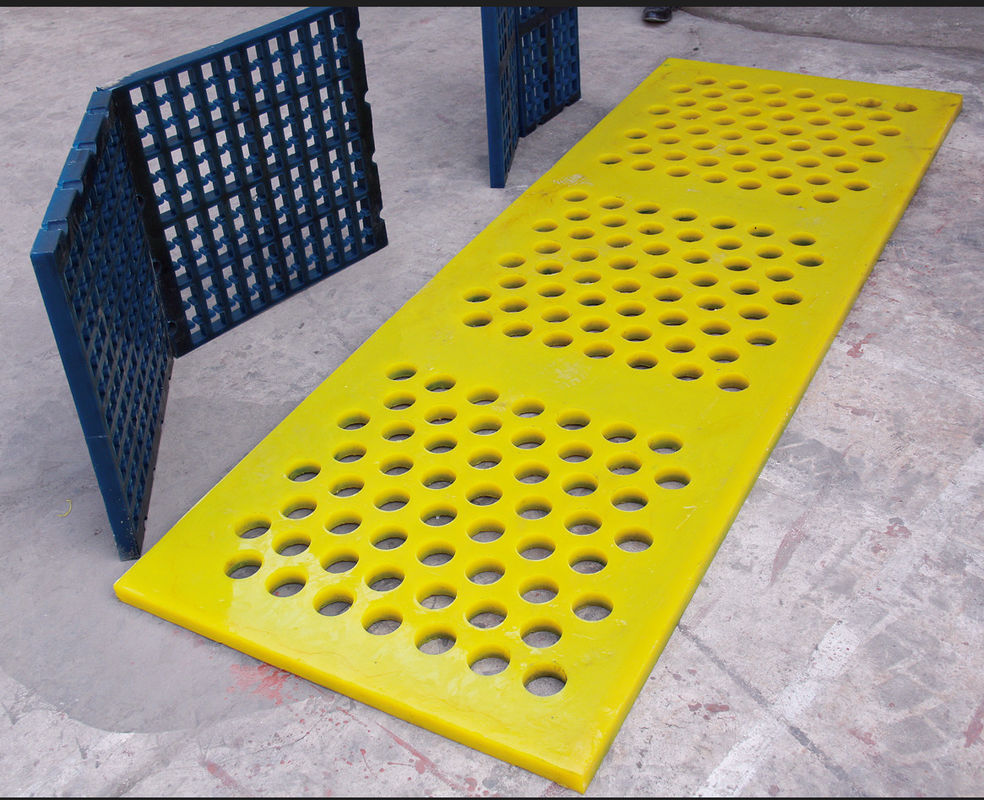

Polyurethane Tensioned Screens Mesh For Stone mining
Polyurethane tensioned screens for stone mining is made from the high quality Polyurethane resin, offer the wear life of a polyurethane panel in a hooked section, so no deck conversion is required. The panel is provided with steel hooks for lateral tensioning and can be adapted to any type of screening system. It is a good choice for many vibrating machine.
The hole could be square, rectangle, and round, length& width could be customized. And the hole size and thickness range is as following table:
| Hole type | Aperture size (mm) | Thickness(mm) |
|
Square |
4-11 | 21-25 |
| 12-29 | 25-30 | |
| 30-59 | 30-40 | |
| 60-100 | 40-50 | |
| More than 100 | 50-60 | |
|
Round |
3-15 | 21-25 |
| 16-30 | 25-30 | |
| 31-50 | 30-35 | |
| 50-70 | 35-45 | |
| More than 70 | 40-60 | |
|
Rectangle |
5*9 | 21-25 |
| 7*10 | 21-25 | |
| 10*20 | 30-45 | |
| 20*35 | 30-45 | |
| 30*50 | 35-50 | |
| 40*50 | 40-55 |
以上图形可以裁剪成圆形来展现
| Fastening Options | Hook Style |
| Quotation info needed | length, width, thickness, aperture size and quantity |
Main Features
1.Due to the elastic polyurethane screen panel use wire rope as skeleton material, it has a larger bearing capacity, higher screening efficiency, and lower noise.
2.Polyurethane itself has very elastic modulus as well as absorb the impact of high strength , its carrying capacity is 2.5 times more than rubber panel.
3.Excellent abrasion resistance performance and long service life.
4.Corrosion resistance, nonflammable, environmental-protection.
5.Polyurethane screen panel is self-cleaning and improves the screening efficiency.
6. Service life is 8-10 times higher than the common metal mesh and 3 times than the stainless steel mesh.
