Product Details:
|
| Features: | High Strength, Durable, Easy To Install | Application: | For The Quarry Screen |
|---|---|---|---|
| Color: | Red, Yellow, Orange Etc. Color Can Be Adjusted By The Customer Requirement | Materials: | Polyurethane Materials |
| Mesh Size: | Can Be Designed According To The Customer Requirement | Tear Resistance: | High |
| Aperture Size: | Min 3mm | Thickness: | Min 21mm |
| Highlight: | 21mm Tension Polyurethane Screen Mesh,Min Thickness 21mm Polyurethane Screen Mesh,Polyurethane Screen Mesh For Quarry |
||

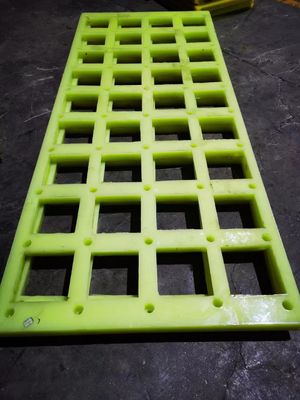

Min Thinkness 21mm Polyurethane Tension Screen Mesh For Quarry
Polyurethane tensioned screen mesh for Quarry is a specialized type of screen media used in various industries, particularly in applications where screening and separation of materials are essential.The panel is provided with steel hooks for lateral tensioning and can be adapted to any type of screening system. It is a good choice for many vibrating machine.
The hole could be square, rectangle, and round, length& width could be customized. And the hole size and thickness range is as following table:
| Hole type | Aperture size (mm) | Thickness(mm) |
|
Square |
4-11 | 21-25 |
| 12-29 | 25-30 | |
| 30-59 | 30-40 | |
| 60-100 | 40-50 | |
| More than 100 | 50-60 | |
|
Round |
3-15 | 21-25 |
| 16-30 | 25-30 | |
| 31-50 | 30-35 | |
| 50-70 | 35-45 | |
| More than 70 | 40-60 | |
|
Rectangle |
5*9 | 21-25 |
| 7*10 | 21-25 | |
| 10*20 | 30-45 | |
| 20*35 | 30-45 | |
| 30*50 | 35-50 | |
| 40*50 | 40-55 |
| Fastening Options | Hook Style |
| Quotation info needed | length, width, thickness, aperture size and quantity |
Main advantage:
1.Due to the elastic polyurethane screen panel use wire rope as skeleton material, it has a larger bearing capacity, higher screening efficiency, and lower noise.
2.Polyurethane itself has very elastic modulus as well as absorb the impact of high strength , its carrying capacity is 2.5 times more than rubber panel.
3.Excellent abrasion resistance performance and long service life.
4.Corrosion resistance, nonflammable, environmental-protection.
5.Polyurethane screen panel is self-cleaning and improves the screening efficiency.
6. Service life is 8-10 times higher than the common metal mesh and 3 times than the stainless steel mesh.
