Product Details:
|
| Features: | High Strength, Durable, Easy To Install | Application: | For The Quarry Screen |
|---|---|---|---|
| Color: | Red, Yellow, Orange Etc. Color Can Be Adjusted By The Customer Requirement | Materials: | Polyurethane Prepolymer |
| Mesh Size: | Can Be Designed According To The Customer Requirement | Tear Resistance: | High |
| Aperture Size: | Min 3mm | Thickness: | Min 21mm |
| Aperture Shapes: | Square | Hook Style: | Can Be Adjusted By The Customer Requirement |
| Highlight: | Square Polyurethane Rubber Tension Screen,Rubber Tension Screen With Hooks,Mine And Quarry Rubber Tension Screen |
||

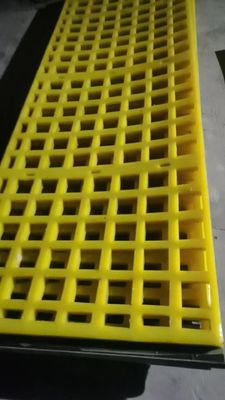

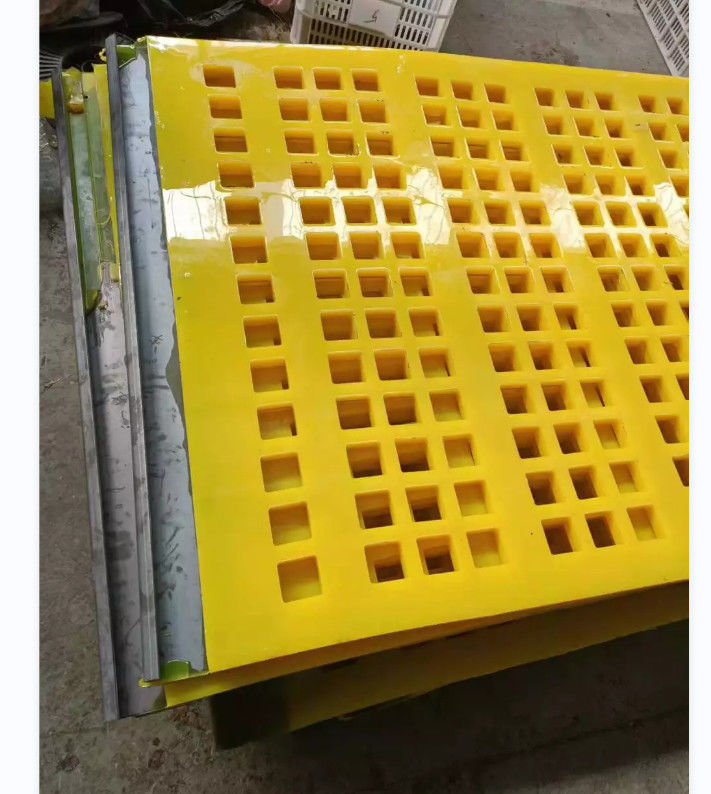

Square Polyurethane Rubber Tension Screen With Hooks For Mine And Quarry
Square Polyurethane rubber tensioned screen with hook is a kind of Tensioned screen mesh, which is applied for the mine and Quarry . The Hole type is square. The panel is provided with steel hooks for lateral tensioning and can be adapted to any type of screening system. It is a good choice for many vibrating machine.
The hole type is square, sizes are at the below table.
| Hole type | Aperture size (mm) | Thickness(mm) |
|
Square |
4-11 | 21-25 |
| 12-29 | 25-30 | |
| 30-59 | 30-40 | |
| 60-100 | 40-50 | |
| More than 100 | 50-60 |
For the quoation,we need the information below:
| Fastening Options | Hook Style |
| Quotation info needed | length, width, thickness, aperture size and quantity |
Main Feature:
1.Due to the elastic polyurethane screen panel use wire rope as skeleton material, it has a larger bearing capacity, higher screening efficiency, and lower noise.
2.Polyurethane itself has very elastic modulus as well as absorb the impact of high strength , its carrying capacity is 2.5 times more than rubber panel.
3.Excellent abrasion resistance performance and long service life.
4.Corrosion resistance, nonflammable, environmental-protection.
5.Polyurethane screen panel is self-cleaning and improves the screening efficiency.
6. Service life is 8-10 times higher than the common metal mesh and 3 times than the stainless steel mesh.
