Product Details:
|

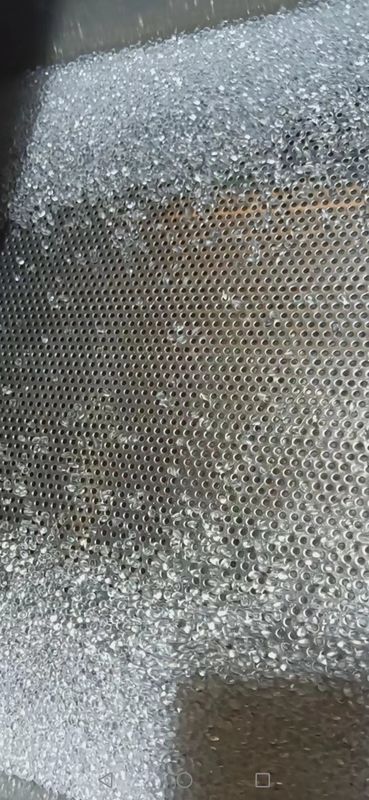

| Hardness: | 80A To 95A | Appearance: | Granules |
|---|---|---|---|
| Name: | Thermoplastic Polyurethane Resin | UV Resistance: | Good Anti Yellowing |
| Material: | PTMEG/Polyster & MDI | Application: | Automotive Cables, Mining Cables, Energy Cables, Consumer Electronics Cables, Etc. |
| Highlight: | excellent fire resistance TPU Raw Materials,TPU Raw Materials Halogen Free,TPU Raw Materials For Cable |
||
High quality TPU materials with excellent fire resistance halogen-free for cable
During combustion, the outer coating material of TPU is rapidly carbonized and expanded, forming a barrier burning layer outside the wire, so as to achieve a flame retardant effect. It can effectively protect the core or core wire, and does not need to worry about the combustion of flammable substances caused by dripping. Is the future trend of flame retardant materials.
| Items | Test method | Test condition | Unit | KL-575A | KL-580A | KL-585A | KL-590A | KL-595A |
| Appearance | Customer sample | — | — | Shinning/ Half fog/fog | ||||
| Color | — | — | — | Black/Origina | ||||
| Hardness | DIN 53505 | 15S | Shore A | 75±3 | 80±3 | 85±3 | 90±3 | 95±3 |
| specific gravity | DIN 53479 | — | g/cm3 | 1.24 | 1.24 | 1.25 | 1.25 | 1.25 |
| Melt index | DIN 53735 | 190℃/2.16Kg | g/10min | 12 | 12 | 10 | 10 | 10 |
| brittle temperature | ISO 812 | — | ℃ | -70 | -70 | -65 | -65 | -65 |
| Elongation | DIN 53504 | 200mm/min | % | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 |
| Tensile strength | Mpa | ≥15 | ≥15 | ≥18 | ≥18 | ≥18 | ||
| Tear strength | DIN 53515 | 500mm/min | KN/m | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Vicat temperature | ASTM D1525 | — | ℃ | 115 | 118 | 125 | 128 | 130 |
| Normal Temp. | — | — | ℃ | -55~100 | -55~100 | -55~100 | -55~105 | -55~105 |
| Vertical Burning Test | UL 94 | 3.0mm | — | V0 | V0 | V0 | V0 | V0 |
| oxygen index value | ASTMD2863 | — | % | 32 | 32 | 32 | 32 | 32 |
| Weather resistance/hydrolyzability | ASTM | constant temperature and humidity | — | Excellent | Excellent | Excellent | Excellent | Excellent |
How to choose Polyether (PTMEG & Polyester System) ?
1. Polyether system
Material characteristics: hydrolysis resistance, low temperature resistance, biological resistance
Recommended for use in: outdoor use, underground wiring, low temperature environment, etc.

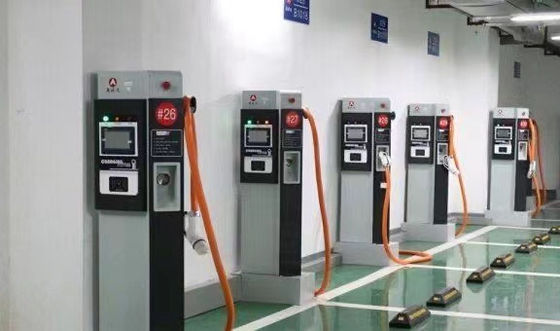

For example: civil and military communication products (outdoor, field, underground), outdoor sports equipment (mountaineering, wading, etc.), energy (wind, solar, hydropower stations, etc.), charging piles (low-temperature environment).
2. Polyester System
Material properties: tensile strength, chemical resistance, excellent wear resistance
It is recommended to use in: indoor, relatively dry, chemical environment, high physical performance requirements, and high ambient temperature.
For example: machinery and equipment (assembly lines, robots) these products require high physical properties. Transportation (all kinds of vehicles, ships, aircraft) and other high-temperature use environment.
