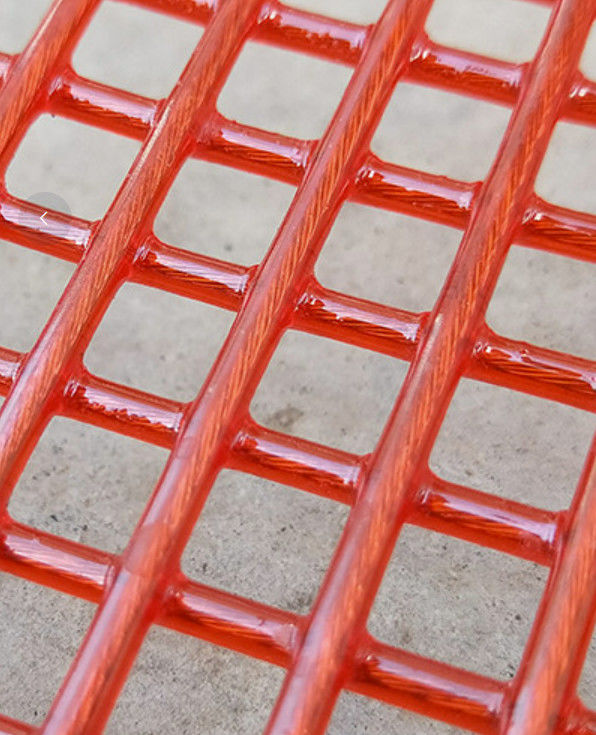

Aperture size 22mm with Wire Dia 12/10mm TPU Mesh

Large Image : Aperture size 22mm with Wire Dia 12/10mm TPU Mesh

Product Details:

Place of Origin:	SHANDONG, CHINA
Brand Name:	JOYWAY
Certification:	ISO9001
Model Number:	JW0401

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	USD 100-200/PC
Packaging Details:	polywood box
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 pcs per month

Contact Now

Aperture size 22mm with Wire Dia 12/10mm TPU Mesh

Description

Products Name:	TPU Wire Mesh	Application:	Ore,coal,sand,silver.stone,gold,iron
Core Components Materials:	Thermoplastic Polyurethane Resin& Steel	Dimension(LWH):	Customized
Apeture:	22mm	Wire Dia:	12/10mm
Warranty Of Core Components:	6 Months	Hardness:	ShoreA 70-85
Highlight:	12/10mm Wire TPU Mesh , Wire Dia 12/10mm TPU Mesh , 22mm Aperture TPU Mesh

Aperture size 22mm with Wire Dia 12/10mm TPU Mesh

Application :

It is suitable for the screening and separation of medium-sized materials with an aperture of 5mm-40mm of particles in mining, coal, building materials and other industries. It is suitable for air separation and dry separation.

Advantages :

TPU Steel Wire inside screen mesh as the advantages of light weight, high screening efficiency, anti-friction, anti-impact, anti-tearing, long service life.
Low noise, convenient installation and high comprehensive benefit, etc. it is widely used in mining, coal and other industries, and it is suitable for various kinds of material screening requirements of medium size.
Acid and alkali resistant, high temperature resistant, waterproof, and antistatic.

Raw materials:

1. High-strength steel wire rope, also available in 304 stainless steel.

2. Thermoplastic Polyurethane resin: high strength; food grade polyurethane can also be used, which is safer.
