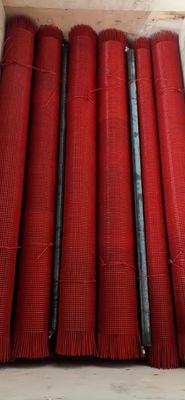

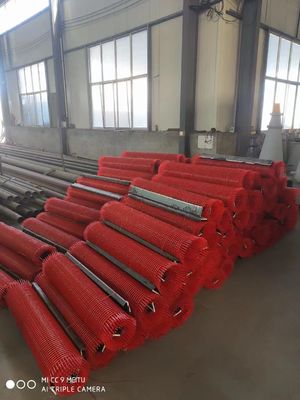

Polyurethane Coated Vibrating Screen Mesh Self Cleaning Steel Core Polyurethane Screen

 Polyurethane Coated Vibrating Screen Mesh Self Cleaning Steel Core Polyurethane Screen

Application :

It is suitable for the screening and separation of medium-sized materials with an aperture of 5mm-40mm of particles in mining, coal, building materials and other industries. It is suitable for air separation and dry separation.

Advantages :

The polyurethane costed vibrating screens last over twice as long as traditional woven wire mesh. The performance is different from traditional wire, rubber and poly screens due to a combination of the poly/wire construction and the fully/partially weld features.
Along with a longer lifespan, this kind of screen also makes less noise than its wire counterpart, with less sound emanating from clashing objects on the screen

Raw materials:

1. High-strength steel wire rope, also available in 304 stainless steel.

2. Thermoplastic Polyurethane resin: high strength; food grade polyurethane can also be used, which is safer.

Production process:

1. Use a variety of wire diameters and materials of steel wire rope, wrap a layer of polyurethane, and use a self-developed machine to weld the mesh one by one. According to the size of the wire diameter, the welding point depth can be adjusted to ensure the welding strength, fine craftsmanship and high time cost.

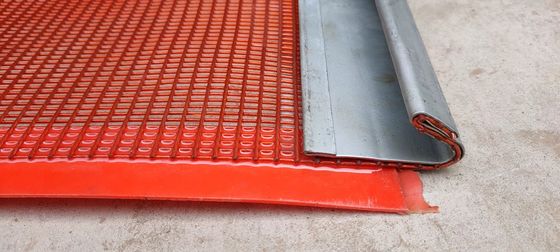

2. Iron plate hooks and rubber iron hooks of different sizes can be added on both sides for installation and fixing.

Quality standards:

Wire diameter error is less than: ±0.5mm, mesh error is less than: ±0.5mm
