Product Details:
|
| Application: | For Mine, Quarry | Handing Capacity: | More Than 250T Per Hours |
|---|---|---|---|

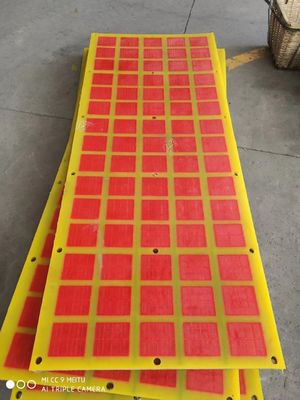

| Weight: | More Than 12T | Materials: | Polyurethane Screen Mesh |
| Obliquity: | 0 | Size: | 6754*2789*1300 Mm |
| Highlight: | Sieving Stone Screen Mesh Equipment,Horizontal Polyurethane Screen Equipment,Sieving Stone Elliptical Screen Equipment |
||

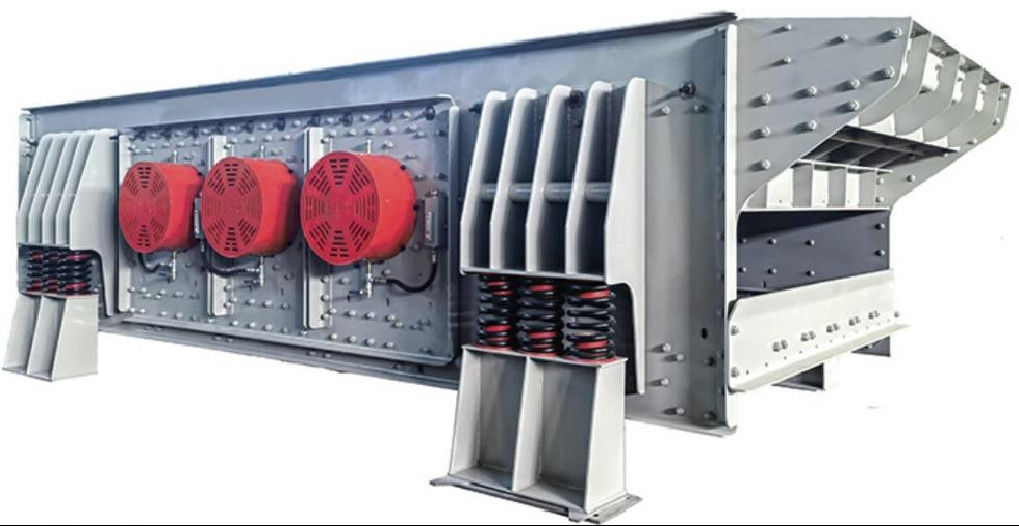

Screen Mesh Equipment For Sieving Stone--Horizontal Elliptical Screen Equipment
Product Introduction:
The three-axis horizontal elliptical screen is a new type of screening machine based on the elliptical vibrating screen, which has strong excitation force,
Large amplitude, better handling of large blocks of material, achieving ideal finished products. Three axis drive can generate ideal elliptical motion for the screening machine, which combines the advantages of circular and linear vibrating screens and is more advantageous for difficult to screen materials;
The three-axis horizontal elliptical screen combines the advantages of both inclined circular vibrating screen and horizontal linear vibrating screen, and has transparency
The characteristics of good screening performance, large processing capacity, and small installation height make it an ideal equipment for various mines, quarries, and mobile screening stations.
Working principle
This series of vibrating screens consists of motors, transmission devices, screen boxes, rubber springs, frames, dampers, etc.
When the equipment is in operation, power is transmitted from the motor through a V-belt to the exciter drive shaft and gear vibrator (with a speed ratio of 1), achieving the rotation of the three shafts at the same speed, generating excitation force. The exciter is connected to the high-strength bolt of the screen box, generating elliptical motion. The material moves elliptical at high speed on the sieve surface, quickly layering, sieving, and moving forward to complete the classification of the material.
Advantages and characteristics:
1. Large processing capacity and high screening efficiency;
2. The running trajectory of the screening machine is elliptical, with smooth motion and low power consumption;
3. The material screening is smooth and not easy to block holes or materials.
Technical data: For more types, Pls feel free to contact us
| Single layer dry oil horizontal elliptical screen | ||||||
|
Type |
Capacity(t/h) |
Power(kw) |
Obliquity(°) |
Double-amplitude(mm) |
Weight (t) |
Size(mm) |
|
S1860 |
250-450 |
22 |
0 |
9-13 |
12 |
6754x2789x1300 |
|
S2460 |
350-550 |
30 |
0 |
9-13 |
13 |
6754x3309x1500 |
|
S3060 |
450-750 |
30 |
0 |
9-13 |
18 |
6754x4009x1800 |
