Product Details:
|
| Material: | Polyurethane | Mesh Type: | Polyurethane Screen Mesh |
|---|---|---|---|
| Mesh Aperture: | Aperture Can Be Compromised | Spiral Diameter: | ≥1000 |
| Application: | Washing Sand | Feeding Size: | ＜10mm |
| Highlight: | Spiral Sander Polyurethane Screen Mesh,Washing Sand Polyurethane Screen Mesh,Spiral Sander Pu Screen Mesh |
||

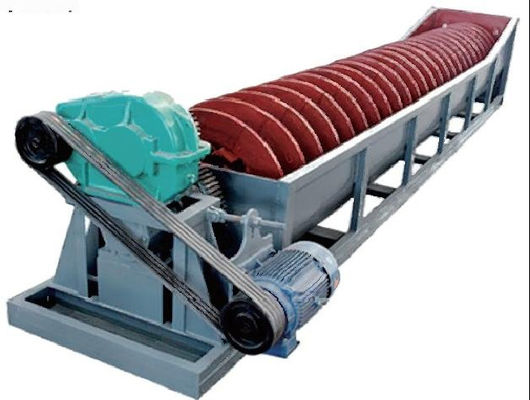

Polyurethane Sreen Mesh --- Spiral Sander For Washing Sand
Working principle:
The CY series spiral sand washing machine adopts a selective design concept and scientific design structure, with high classification efficiency, ensuring low mud content and high recovery rate of fine sand. It is mainly used for materials with high mud content in machine sand washing, fine aggregate desilting and other operations.
Performance characteristics:
1. The CY series spiral sand washing machine has a high sand recovery rate, low mud content, and a large single machine processing capacity.
2. The spiral part is made of manganese steel (or 304 stainless steel) in one piece, ensuring the angle of the spiral,
Improved classification efficiency.

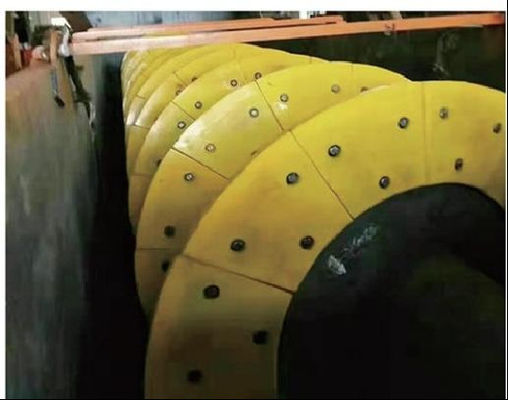

3. The spiral blades are protected by imported polyurethane or wear-resistant alumina ceramics,
Ensure long-term fault free operation of the blades.

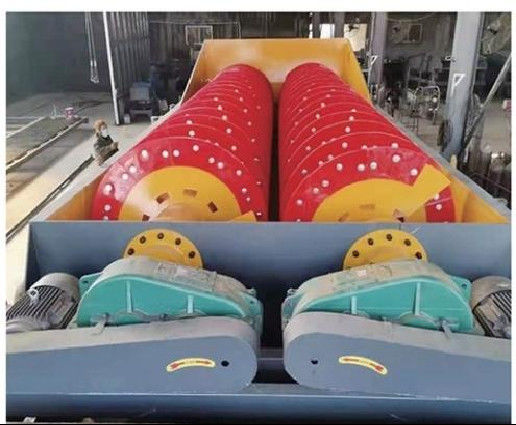

4. Adopting modular design, single helix and double helix structures can be designed to achieve the integration of a single device
High altitude management to save investment.
5. The tank body and severely worn parts are sprayed with imported wear-resistant materials, ensuring that the equipment will not appear for more than 2 years
Corrosion, rusting, and other issues.
6. The motor, bearings, and deceleration motor adopt well-known domestic brands.
|
Model |
Feeding size (mm) |
Handing capacity(t/h) |
Spiral diameter(mm) |
Spiral Qty(pieces) |
Power(kw) |
|
CY-LXS1000 |
<10 |
40-70 |
1000 |
1 |
15 |
|
CY-LXS1200 |
<10 |
60-90 |
1200 |
1 |
18.5 |
|
CY-LXS1500 |
<10 |
80-130 |
1500 |
1 |
22 |
|
CY-2LXS1000 |
<10 |
80-120 |
2-1000 |
2 |
15*2 |
|
CY-2LXS1200 |
<10 |
120-160 |
2-1200 |
2 |
18.5*2 |
|
CY-2LXS1500 |
<10 |
160-240 |
2-1500 |
2 |
22*2 |
