Product Details:
|
| Material: | Casting Polyurethane | Material: | TPU For The Other Layer |
|---|---|---|---|
| Dimensions: | 1040*700mm, Can Be Customized | Aperture Size: | 0.075mm,0.1mm,0.15mm,0.18mm,0.25mm Etc |
| Hardness: | 85+/-2 Shore A | Application: | Ore, Coal Screening |
| Highlight: | Two Layer Polyurethane Screen Panel,High Frequency Polyurethane Screen Panel,Two Layer pu screen panel |
||

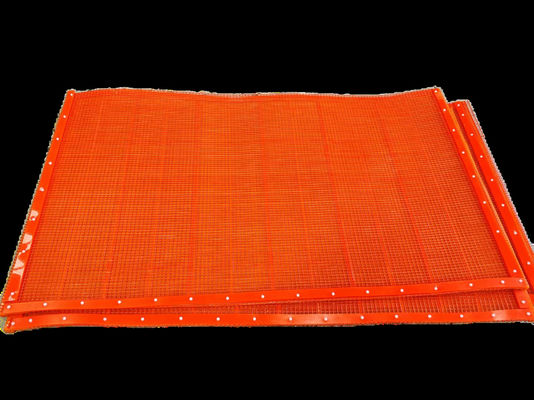

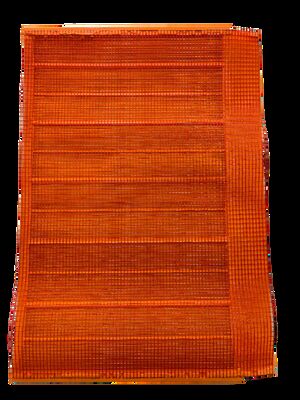

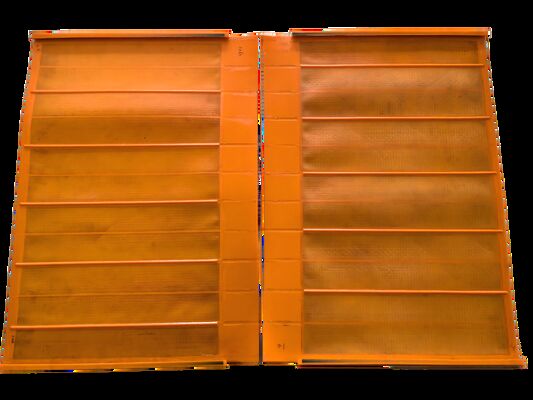

Two Layer High Frequency Screen Panel For The Iron Ore
This two layer high frenqency screen panel is made from Polyurethane resin.
First layer is from Polyurethane casting materials, second layer is from TPU. These two layer are fixed by the screws.
The biggest advantage is long working life.
Normal size 1040*700mm, size can be customized.
Open area rate: 32%~42%
Minimum aperture: 0.053mm
Using life: more than 6months
Available apertures:
0.075mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm, 0.23mm, 0.3mm,0.45mm, 0.5mm, 0.55mm,0.6mm, 0.7mm, 0.85mm, 1.0mm
For High Frequency Vibrating Screen equipment
Material: Casting Polyurethane materials for first layer
TPU for second layer
