JY-103 System & MDI for Rigid Foam with blowing agent of CP/IP
Introduction
JY-103 System is the blend Polyols for Rigid foam. The blowing agent is cyclopentane which is total eco-friendly.
This system has the low flash point which should be shipped by DG cargo.
It can apply for home appliance such as refrigerators, freezers, ice boxes, sandwich panels and other insulation products.
The finished products enjoy Excellent flowability, the density of the foam is well-distributed, and the thermal conductivity is low.
Typical physical properties
| Property |
JY- 103 System |
Standard |
| Appearance |
yellow transparent liquid |
Q/0600YPU 025-2012 |
|
Viscosity(25℃),mpa·s
Density(20℃),g/ml
OHV mg/KOH/g
|
2500-3500
1.04-1.08
360-400
|
GB/T 12008.7-2010
GB/T 15223-2008
GB/T 12008.3-2009
|
| Water content,(%) |
1.0-3.0 |
GB/T 22313-2008 |
Reaction characteristics
|
Hand mixing
(Raw material temperature 22±2℃, Material ratio 1:1.15-1.25)
|
Data |
| Mould temperature ℃ |
35-40 |
|
Cream Time,s
Gel Time,s
Free Rise Density,Kg/m3
|
Can be adjusted
Can be adjusted
Can be adjusted
|
|
High pressure machine mixing
(Raw material temperature 22±2℃, Material ratio 1:1.15-1.25)
|
Data |
| Mould temperature ℃ |
35-40 |
|
Cream Time,s
Gel Time,s
Free Rise Density,Kg/m3
|
Can be adjusted
Can be adjusted
Can be adjusted
|

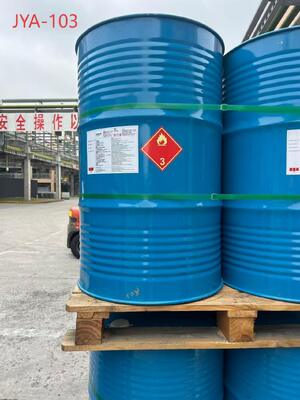

Package: 210kg per drum
Transportation and storage
Pls make ventilate, keep in cool and dry transportation and storage condition, Pls avoid strict sunshine, raining; Shelf life is 6 months on the drum, but if drum is not opened, shelf life can be one year.
